Quick start

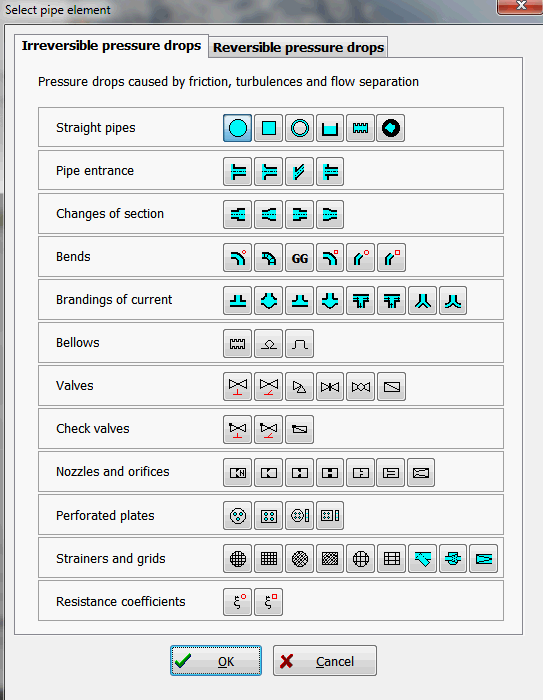

Select menu "Pipe/Select pipe element"
e.g. Bends/Circular bend

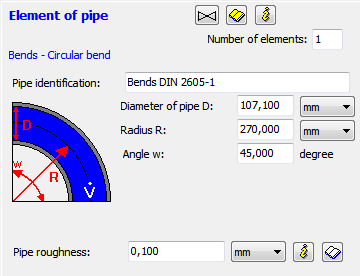

2. Input dimensions of pipe element
in window "Element of pipe", in this case diameter of pipe, radius, angle.
Dimension of several standard parts are available in databases ("menu Pipe/Standard parts")
e.g. Bends DIN 2605-1, DN 50

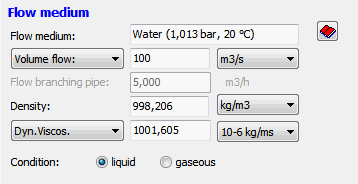

3. Input data of flow medium
in the window "Flow medium". Required are volume flow, density and viscosity. Properties of liquids and gases are available in several databases (menu "Flow medium").
e.g. Volume flow 100 m3/h; density 998.206 kg/m3; dyn. viscosity 1001.61 x 10^-6 kg/ms
4. Calculation
use menu "Calculate/Pressure Drop" or
The calculated data are shown in the table.
5. Calculation of further elements
